The Edan X12 is a compact Multi-Parameter monitor with an abundance of features packed into its slim design.

Capable of monitoring CO2 / NIBP / SPO2 / Temperature / ECG / HR / RR

The 12.1” clear touchscreen and an intuitive shortcut menu enable a optimised operation experience that is quick to learn, the monitor is also supplied with flashcards of the shortcut keys that can be hung from your monitor trolley for easy reference.

This slim & modern monitor is full of additional features to improve usability and monitoring accuracy.

CO2 (Sidestream)

• Sampling rate as low as 50ml/min
• Superior water trap design, preventing monitor from humidity and damage

ECG + Temp

• Auto lead placement detection to reduce false alarms
• Customisable filter for accurate ECG waves and measurements
• Auto-detection of 33 types of arrhythmias
• Additional oesophageal probes that monitor temperature + ECG
• 2 x temp probe ports, allowing you to measure core temp and peripheral temp simultaneously

NIBP

• Dual dust filter design to reduce blockages
• Cleaning mode for routine maintenance

SpO2

• Reference reading of Perfusion Index (PI) according to perfusion changes
• Improved shape design of sensor for stable SpO2 readings

The Edan X12 also offers a long-lasting battery, 240 hours of trend review, and built-in WIFI.

Included in the box is a full set of accessories to get you started, including:

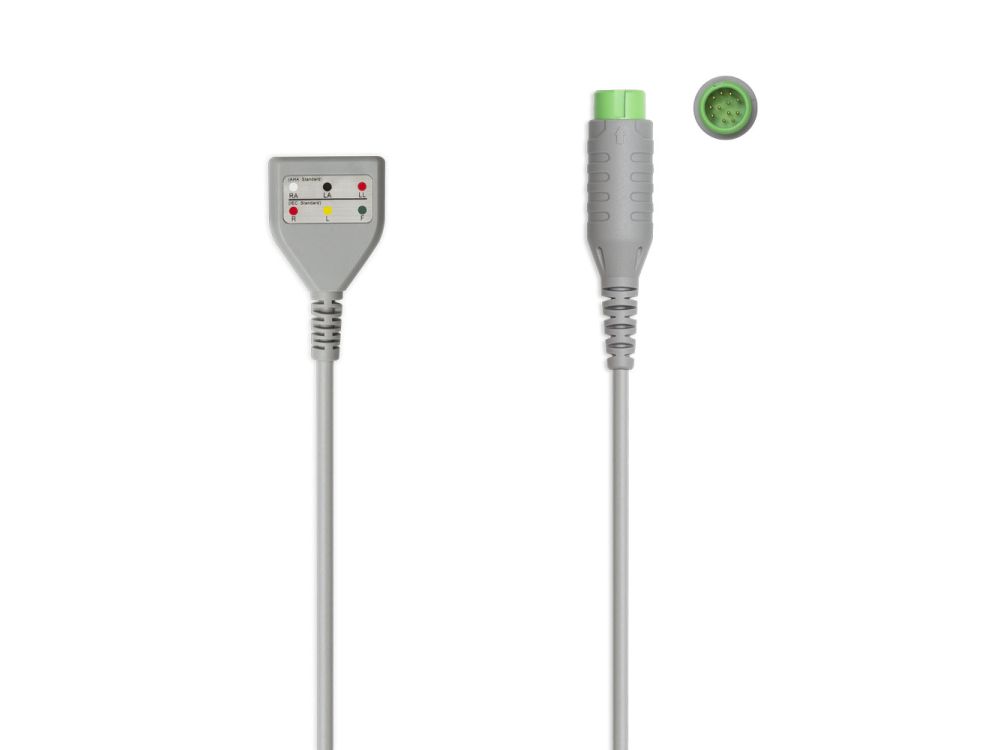

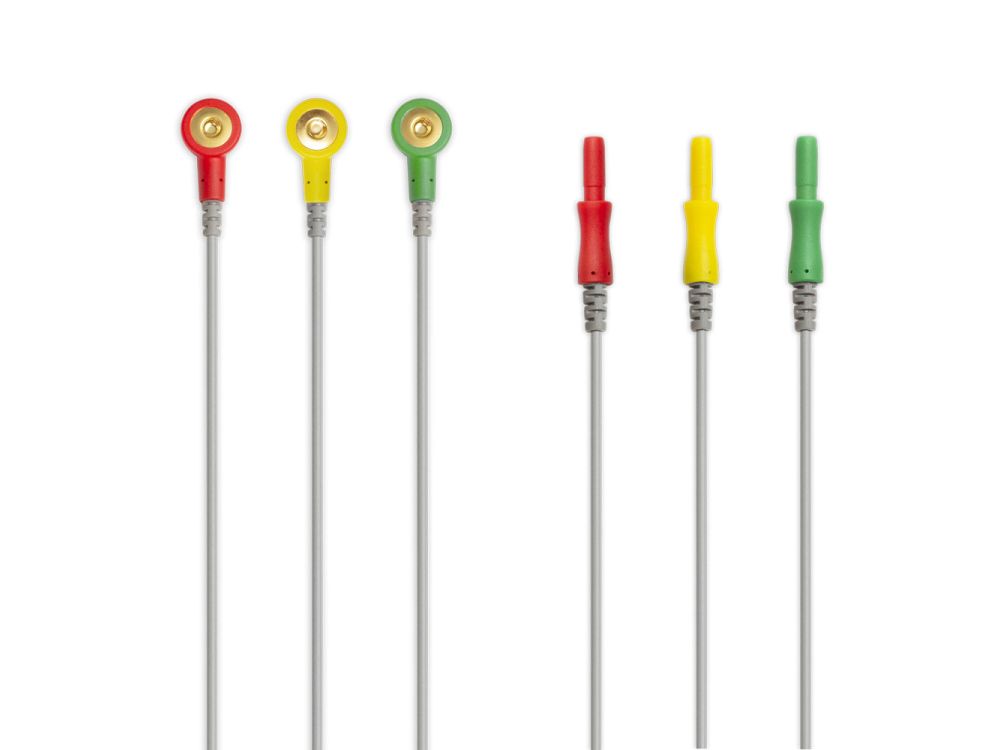

• 2-part 3 x lead ECG cable – press stud style
• Box of 5, high quality, atraumatic crocodile clips that can be used with press studs – great for conscious patients

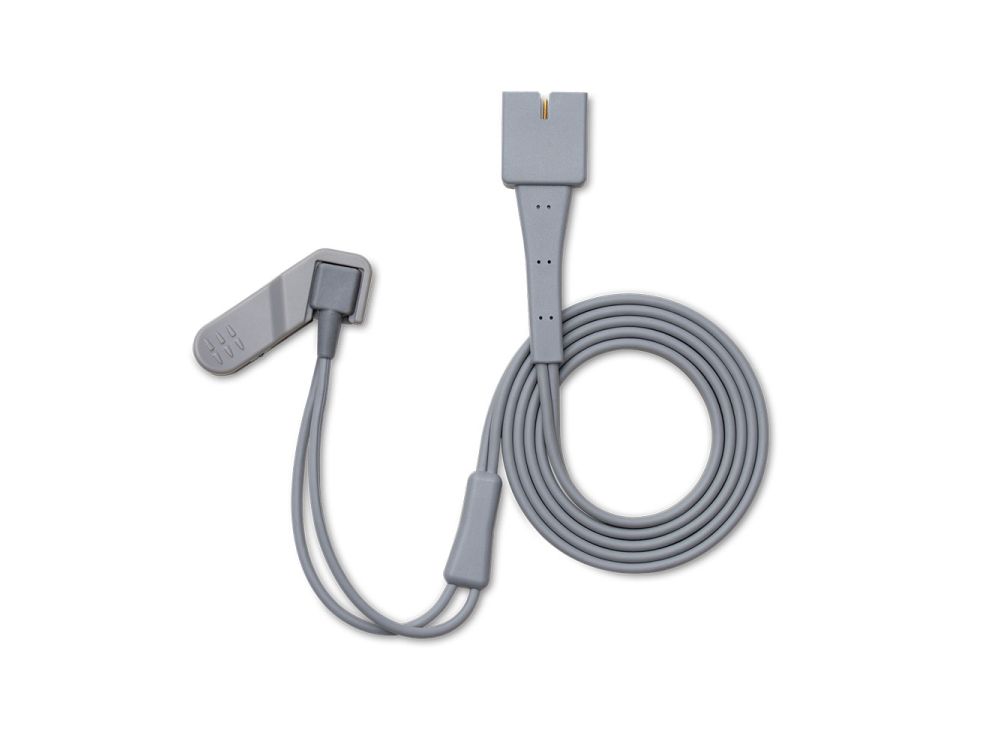

• SpO2 sensor with 2 x crocodile clips included
• Water trap
• 1 x sample line
• 1 x nasal line
• 1 x temperature probe
• Battery pack – also includes foam pad to hold the battery pack in position
• Suntech Cuffs
• Screwdriver for fitting battery pack
• Comprehensive user manual
• Shortcut flashcards

S/N: M24203090013
